SKU: 78580

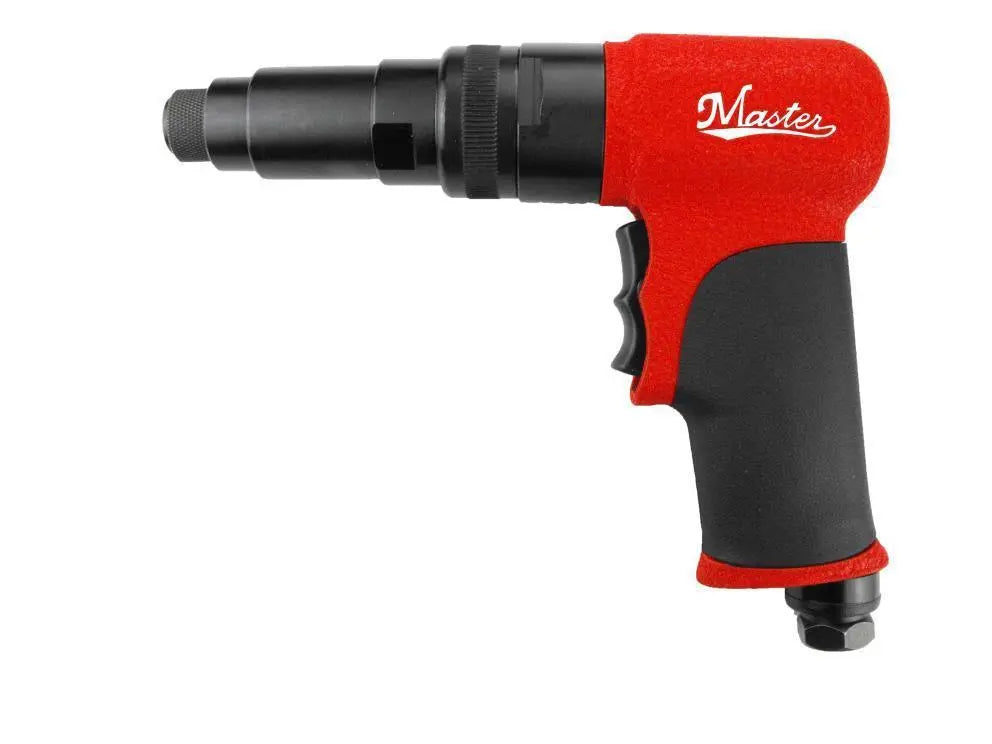

Master Palm 78580 Industrial Reversible Internal Adjustable Torque 1/4" Screwdriver, 750 Rpm
Master Palm Pneumatic Industrial Reversible 1/4" Screwdriver With Feather Trigger and Internal Torque Springs - ISO 9001:2015 Certified, CE Compliant Master Palm internal torque springs switch reversible screwdrivers with 3 torque springs for adjusting different torque range. Bits, Tool Torque Range and Features Easy D
screwdriver/Master Palm
$548.00
Secure Shopify checkoutAvailable payment methods—including a configured manual Zelle option—are selected during Shopify checkout.
Master Palm Pneumatic Industrial Reversible 1/4" Screwdriver With Feather Trigger and Internal Torque Springs - ISO 9001:2015 Certified, CE Compliant
Master Palm internal torque springs switch reversible screwdrivers with 3 torque springs for adjusting different torque range.
Bits, Tool Torque Range and Features
- Easy Direction Trigger: Ergonomically direction trigger design to tap into your fingertips during operation for easy control.
- Reversible Design With Direction Switch
- Rotate to Open: open to exchange springs for different torque range.
- High-quality screwdrivers are designed for challenging jobs on car interior, trucks, buses, and off-road equipment as well as for electronic assembly line.
- bottom grip style for easy handling leverage, these air-powered screwdrivers accept 1/4 hex shank power bits.
- Drivers have a forward reverse switch rear exhaust.
- Green Spring: 50-85 in/lb torque
- Black Spring: 95-105 in/lb torque
- Yellow Spring: 95 ~ 135 lb torque
| SKU | 78580 |
|---|---|
| Item Name | Reversible Internal Adjustable Torque Pistol Grip Screwdriver, 750 Rpm |
| air pressure | 90 psi/6.21 bar |
| exhaust | side |
| free speed | 750 rpm |
| horsepower | 0.9 hp/0.68kw |
| hose size | 3/8"/9.52 mm |
| max. torque | 135 in/lb (11.25 ft/lb/15.25 nm) |
| min. torque | 50 in/lb (4.17ft/lb/5.65 nm) |
| noise rating | 82 dba |
| Free Speed | 750 RPM |
|---|---|
| Air Consumption | 17 SCFM |
| Air Consumption | 2.635 CFM |
| Air Consumption | 375.5232 m³/hr |
| Air Consumption | 6.25872 m³/min |
| Air Pressure | 6.3279 kg/cm² |
| Air Pressure | 90 PSI |
| Air Pressure | 6.21 bar |
| Air Pressure | 620.55 kPa |
| Overall Length | 9.49 in |
| Overall Length | 241 mm |
| Weight | 1.3 kg |
| Weight | 2.86 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8 in |
| Air Hose Size | 9.52 mm |
| Horsepower | 0.9 HP |
| Power | 0.68 kW |
| Max Torque Range Ftlb | 135 |
| Min Torque Range Ftlb | 50 |
| Max Torque Range Nm | 15.25 |
| Min Torque Range Nm | 5.65 |
| Max Torque Range Inlb | 135 |
| Min Torque Range Inlb | 50 |
Features
Features
- External Torque Switch: Enables fast and easy torque adjustment within the desired range for precise control.
- Rubber Grip Design: Enhances grip resistance and user comfort during operation.
Applications
Applications
- Easy Direction Trigger: Ergonomically designed trigger allows intuitive control with fingertip access.
- Rotate to Open: Facilitates spring exchange to adjust torque range as needed.
- Ideal for challenging assembly tasks in automotive interiors, trucks, buses, off-road equipment, and electronic assembly lines.
- Pistol-style design provides leverage and ease of handling in industrial environments.
